Deformable Object Manipulation under Partial Observability via Real-Time Full-Shape Estimation
Kosar Behnia, Ville Kyrki, Gokhan Alcan · N/A · 2026
Framework
N/A
License
N/A
Stars
N/A
Summary
Manipulating deformable objects (DOs) is challenging due to their high-dimensional state space, underactuated dynamics, and partial observability.
Abstract Summary
Key Points
- Manipulating deformable objects (DOs) is challenging due to their high-dimensional state space, underactuated dynamics, and partial observability.
- In this paper, we propose cRVAE, a lightweight conditional recurrent variational autoencoder that estimates the full DO state from only partial corner-node observations during inference.
- The resulting model is used as the forward model in a receding-horizon optimal control framework for obstacle-aware collaborative DO manipulation.
- In simulation on rope and fabric, cRVAE estimates the full DO state from the available corner-node measurements alone, matching the accuracy of a parameter-identified XPBD model.
- At inference it uses no physical parameters as model inputs and performs no online parameter identification.
Problem Formulation
The position of the $i$-th node at time step $k$ is denoted by $x^{i}_{k}\in\mathbb{R}^{3}$, and the full object state is represented by the stacked vector Given a manipulation input $f_{k}\in\mathbb{R}^{m}$, the deformable object dynamics are modeled by an unknown transition function In practical manipulation tasks, the full state $P_{k}$ is not directly available during inference.
Proposed Method
The formulation in Section III requires a predictor that can infer the full DO state from sparse measurements, retain temporal information, and remain differentiable and lightweight for receding-horizon optimization. To instantiate the generic predictor $\Phi_{\theta}$ in ( 4 ), we propose cRVAE, a conditional recurrent variational autoencoder.
During training , full simulated states are available and are used to learn a posterior latent distribution and reconstruct the next full state.
Experiments

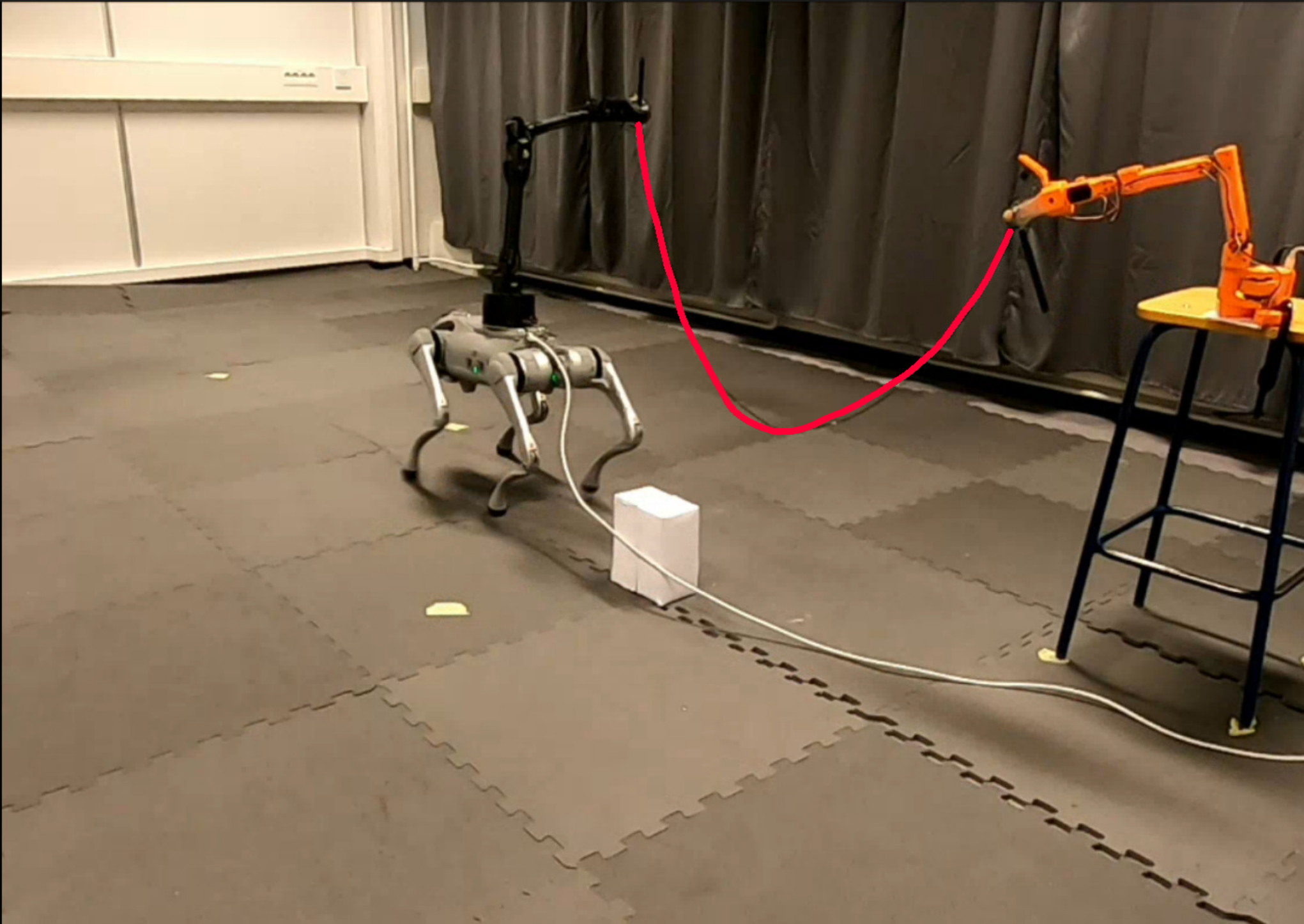

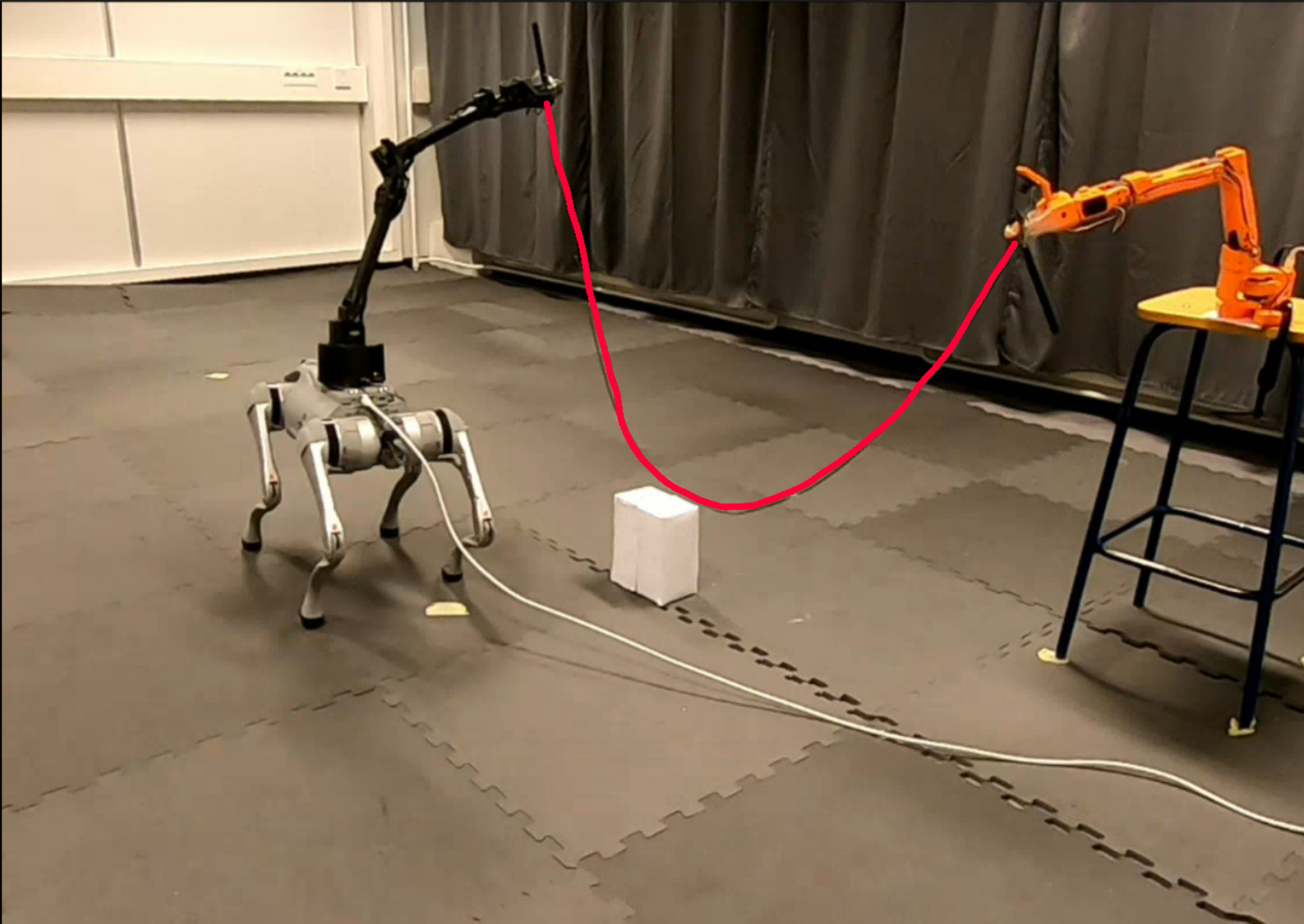

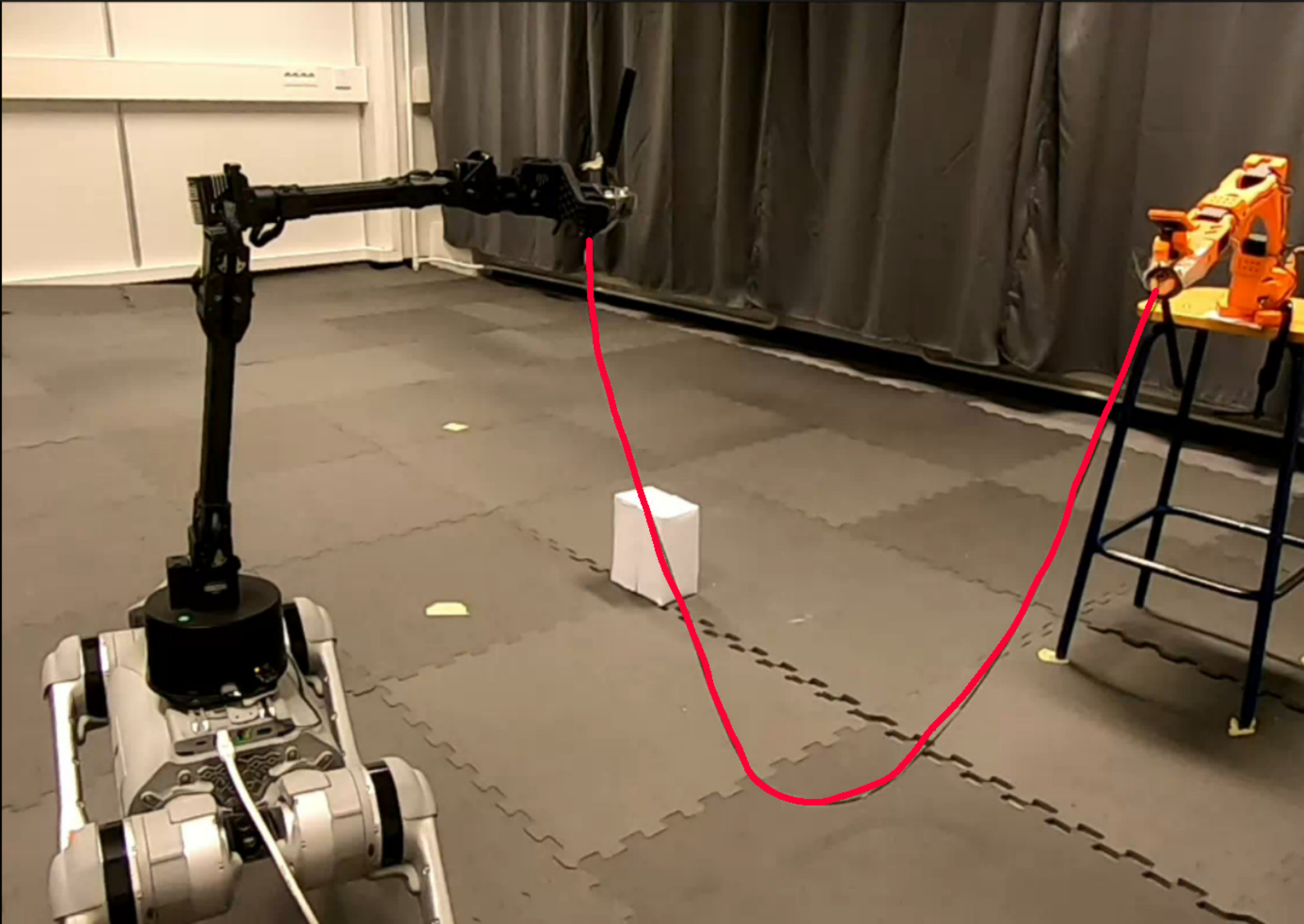

The proposed method is evaluated in three stages: (1) a rope simulation, assessing cRVAE’s prediction accuracy and its use in leader-follower obstacle avoidance (Section V-A ); (2) a fabric simulation, extending the evaluation to a 2D deformable object (Section V-B ); (3) real-world rope manipulation on a Unitree Go2 robot, assessing the framework on physical hardware under the sim-to-real and real-to-sim gap (Section V-C ).
Sources and Demonstrations
Figures are reproduced from Behnia et al. See the full paper for experimental details and the project page, when the paper links one, for demonstrations and videos.
