Weiliang Huang, Huanrong Liu, Bob Zhang, Qi Dou, Zhen Chen, Yun Gu, Guy Rosman, Qingbiao Li · N/A · 2026

Framework

N/A

License

N/A

Stars

N/A

Summary

Reliable surgical planning requires models to anticipate not only how instruments will move, but also how the operative visual state will evolve together with such motion. Existing approaches typically treat future scene generation and instrument trajectory prediction as two separate tasks.

Abstract Summary

Reliable surgical planning requires models to anticipate not only how instruments will move, but also how the operative visual state will evolve together with such motion. Existing approaches typically treat future scene generation and instrument trajectory prediction as two separate tasks. Scene-only models cannot directly evaluate the accuracy of future instrument motion at the trajectory level, while trajectory-only models fail to capture the visual consequences of instrument movement, leaving the consistency between predicted trajectories and future scene evolution unaddressed. Jointly forecasting both provides a more complete account of surgical action-scene dynamics by enabling explicit trajectory-level evaluation while simultaneously modeling the corresponding visual evolution. To bridge this gap, we present a preliminary joint visual-trajectory world-action model that simultaneously forecasts future visual states and instrument trajectories from historical surgical observations. Specifically, we encode historical video frames and tool trajectories into latent representations, which are processed by a temporal-spatial encoder and subsequently decoded through separate visual-state and trajectory prediction heads. Based on this preliminary architecture, a chunked autoregressive rollout is repeatedly applied to predict fifteen future steps. The chunked strategy consistently outperforms direct one-shot prediction across all evaluated horizons, improving first-segment PSNR from 18.86 to 23.11 dB and reducing ADE from 45.77 to 22.22 pixels. These results demonstrate the initial feasibility of joint visual-motion forecasting. However, we observe progressive visual degradation and accumulated trajectory errors over longer prediction horizons, which remain important challenges for future surgical world-action modeling.

Key Points

  • Reliable surgical planning requires models to anticipate not only how instruments will move, but also how the operative visual state will evolve together with such motion.
  • Existing approaches typically treat future scene generation and instrument trajectory prediction as two separate tasks.
  • Scene-only models cannot directly evaluate the accuracy of future instrument motion at the trajectory level, while trajectory-only models fail to capture the visual consequences of instrument movement, leaving the consistency between predicted trajectories and future scene evolution unaddressed.
  • Jointly forecasting both provides a more complete account of surgical action-scene dynamics by enabling explicit trajectory-level evaluation while simultaneously modeling the corresponding visual evolution.
  • To bridge this gap, we present a preliminary joint visual-trajectory world-action model that simultaneously forecasts future visual states and instrument trajectories from historical surgical observations.

Method

Given a sequence of $K$ observed surgical frames, and the corresponding historical two-dimensional instrument trajectory, our objective is to jointly predict future visual states and instrument trajectories over a horizon of $H$ steps. Instead of directly predicting future frames in the pixel space, we represent each future visual state using a latent feature representation.

Method — Towards Surgical World-Action Modeling: A Preliminary Joint Visual-Trajectory Forecasting for Surgical Motion Planning

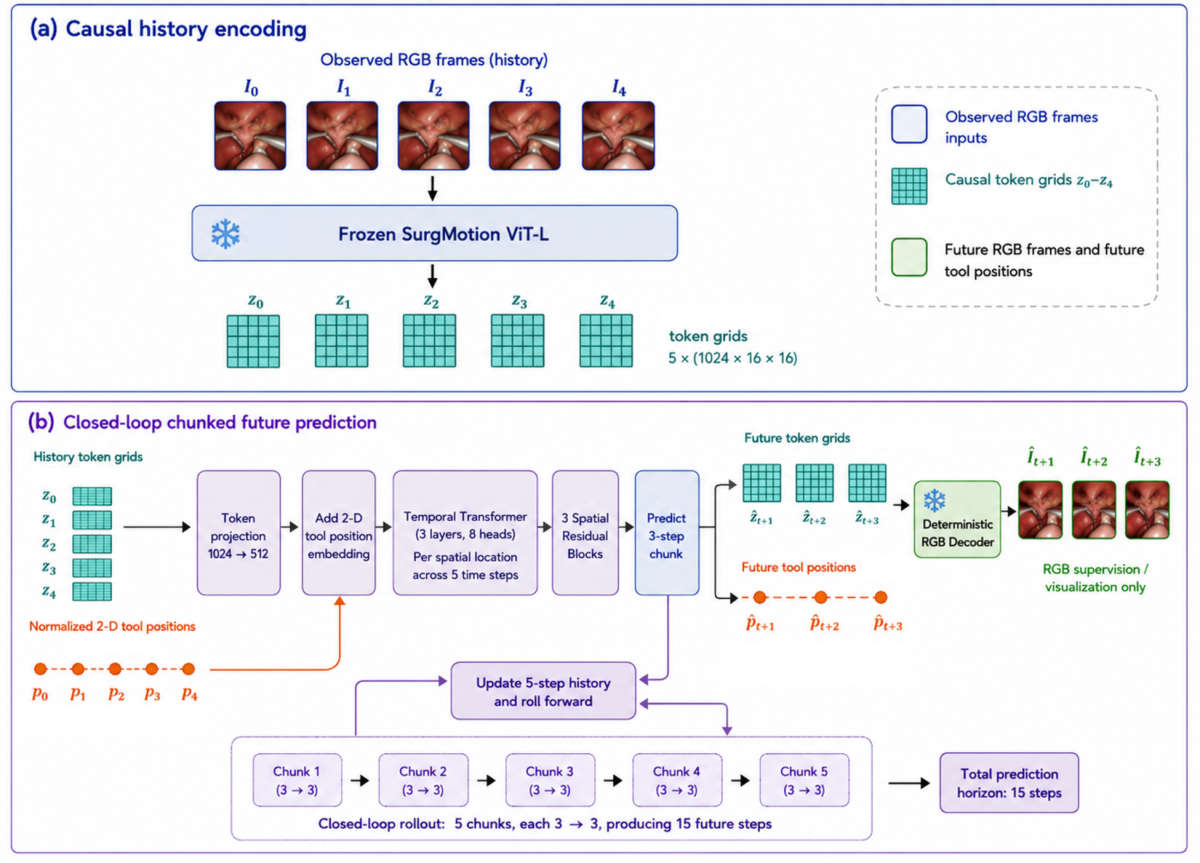

Figure 1: Overview of the proposed method. (a) Causal history encoding: five observed RGB frames are processed by the frozen SurgMotion ViT-L encoder to obtain causal token grids. (b) Closed-loop chunked future prediction: the predictor jointly forecasts future token grids and normalized 2-D tool positions in 3-step chunks; each predicted chunk updates the 5-step history for the next rollout, producing a total 15-step forecast.

Experiments

We conduct experiments on SurgWMBench [ 11 ] , a vision-based surgical motion planning benchmark constructed from SAR-RARP50 [ 13 ] , which contains real clinical videos of Robot-Assisted Radical Prostatectomy (RARP) performed using the da Vinci surgical system. SurgWMBench focuses on suturing motions and extracts effective needle insertion and extraction actions as individual motion segments.

The benchmark contains 1,637 valid segments, corresponding to 32,740 annotated surgical frames.

Experiments — Towards Surgical World-Action Modeling: A Preliminary Joint Visual-Trajectory Forecasting for Surgical Motion Planning
Figure 2: Qualitative comparison of direct one-shot prediction and chunked autoregressive rollout. Columns show the future states at $t+3$, $t+6$, $t+9$, $t+12$, and $t+15$. Rows show the (a) direct one-shot prediction, (b) chunked autoregressive rollout and (c) ground truth. Instrument trajectories are overlaid on the corresponding visual states. For visualizaton purpose, we cropped the region of interest for comparision.

Sources and Demonstrations

Figures are reproduced from Huang et al. See the full paper for experimental details and the project page, when the paper links one, for demonstrations and videos.
